ESI-CLEAN SHOWER AND DRAIN TRAPS

Welcome to Esi-Clean Traps. These easy to install drains can be used in showers, urinals, floors, patios and anywhere that requires a drain cover to prevent blockages and reduce smells. Our Esi-Clean Waste are made right here in New Zealand and have been around since the 1950s.

SAVE TIME, SAVE MONEY

Our Esi-Clean Waste Traps save time and money by removing the need to dig into the ground and get under floors to remove blockages. If the drain blocks, it can be cleaned easily by unscrewing the stainless steel top, removing the obstruction, then screwing the top back on.

BETTER FOR THE ENVIROMENT

Our stylish, modular design allows you to replace individual parts, rather than requiring a completely new waste trap. They're also made from metal, making them more durable and more environmentally friendly than plastic alternatives.


Shower Bottom Exit Waste Traps

This compact design is ideal for concrete or timber floors. It is unobtrusive and typically used in bathrooms, laundries, spa rooms, wash down areas, or any other place where there is a potential of water overflow.

The flat lid design allows the trap to be mounted flush with the floor, eliminating any potential tripping hazard. And because it is made of durable stainless steel, it can withstand the harsh environment traps often face in residential and light commercial use.



These traps are available flanged or unflanged. The flanged version is ideal for fitting into a concrete floor as it can be set and indented into the ground, while the unflanged version is ideal for welding into a stainless steel tray. Male threaded outlet pipe not supplied, refer to your installer.

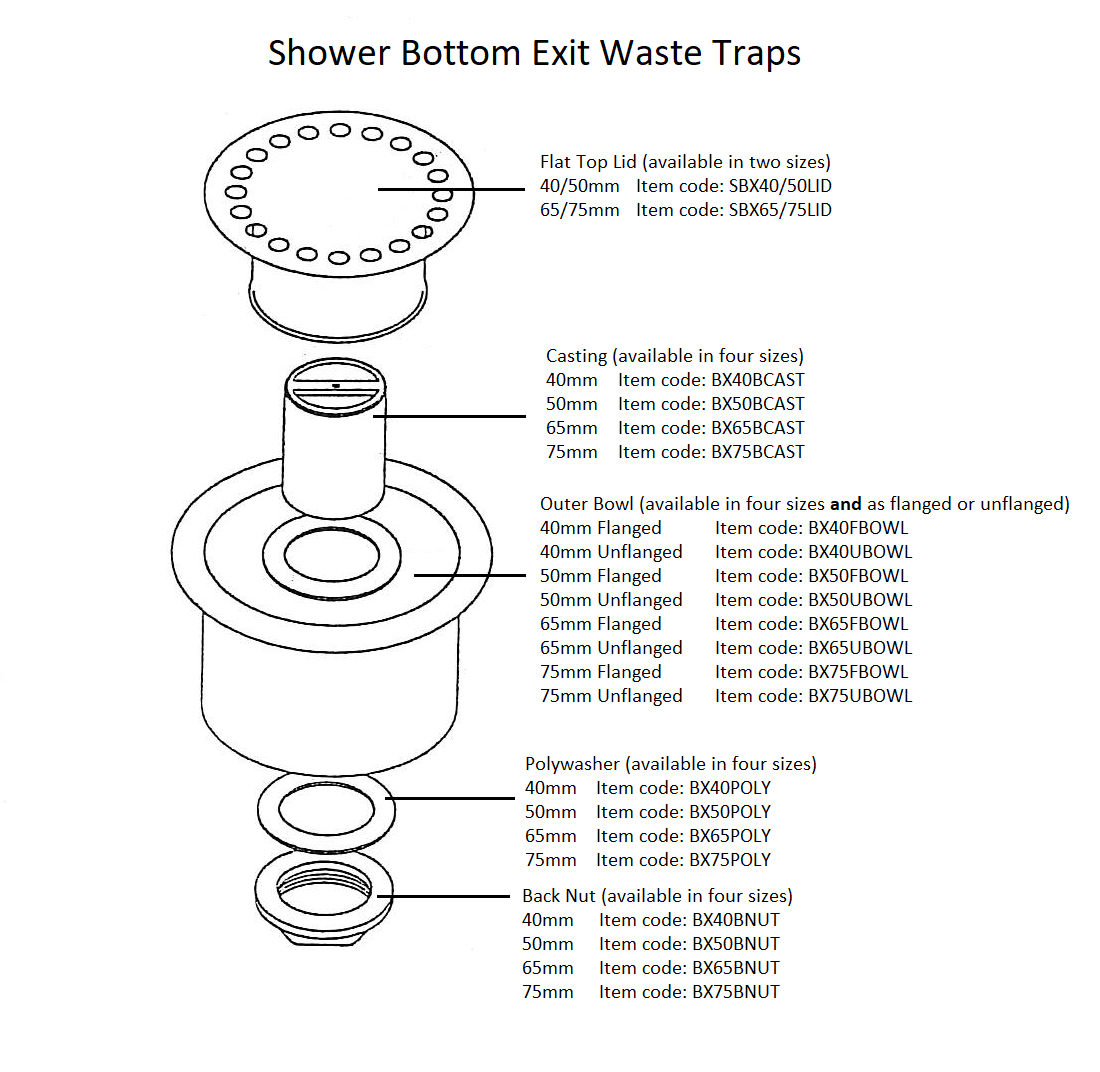

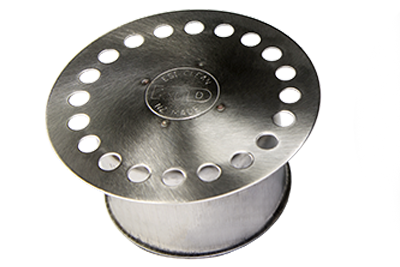

Shower Bottom Exit Lid

Features

  • High quality, durable stainless-steel trap
  • Easy to clean and remove blockages
  • More environmentally friendly than plastic alternatives
  • Ideal for standard home use

Technical specifications

Code Flanged/ Unflanged Outlet Size Flow Rate A B C D
SBX40F Flanged 40 mm 47 l/min 120 mm 131 mm 151 mm 76 mm
SBX40U Unflanged 40 mm 47 l/min 120 mm 131 mm 151 mm 76 mm
SBX50F Flanged 50 mm 68 l/min 120 mm 131 mm 151 mm 76 mm
SBX50U Unflanged 50 mm 68 l/min 120 mm 131 mm 151 mm 76 mm
SBX65F Flanged 65 mm 114 l/min 148 mm 156 mm 176 mm 79 mm
SBX65U Unflanged 65 mm 114 l/min 148 mm 156 mm 176 mm 79 mm
SBX75F Flanged 75 mm 190 l/min 148 mm 156 mm 176 mm 79 mm
SBX75U Unflanged 75 mm 190 l/min 148 mm 156 mm 176 mm 79 mm

Urinal Bottom Exit Waste Traps

Dome top traps allow solid waste such as cigarette butts, chewing gum and perfume cubes to become trapped in a urinal trough without blocking water flow.

Traps installed in urinals that build up with uric salts can be easily disassembled and cleaned, preventing blocked drains and removing the need to dig up concrete floors to unblock drains.

The Esi-Clean Waste Trap design places the water seal at the highest point of water outflow, minimising any smell.

These traps are available flanged or unflanged. The flanged version is ideal for fitting into a concrete floor as it can be set and indented into the ground, while the unflanged version is ideal for welding into a stainless steel urinal tray. The outer bowls used for our Urinal Bottom Exit Waste Traps are the same dimensions as those used for our Shower Bottom Exit Waste Traps.

Features

  • Suitable for concrete or stainless steel applications
  • Design minimises unpleasant smells
  • Easy to clean and remove blockages
  • More environmentally friendly than plastic alternatives

Technical specifications

Code Flanged/ Unflanged Outlet Size Flow Rate A B C D
UBX40F Flanged 40 mm 47 l/min 120 mm 140 mm 150 mm 75 mm
UBX40U Unflanged 40 mm 47 l/min 120 mm 140 mm 150 mm 75 mm
UBX50F Flanged 50 mm 68 l/min 120 mm 140 mm 150 mm 75 mm
UBX50U Unflanged 50 mm 68 l/min 120 mm 140 mm 150 mm 75 mm
UBX65F Flanged 65 mm 114 l/min 148 mm 170 mm 175 mm 79 mm
UBX65U Unflanged 65 mm 114 l/min 148 mm 170 mm 175 mm 79 mm
UBX75F Flanged 75 mm 190 l/min 148 mm 170 mm 175 mm 79 mm
UBX75U Unflanged 75 mm 190 l/min 148 mm 170 mm 175 mm 79 mm

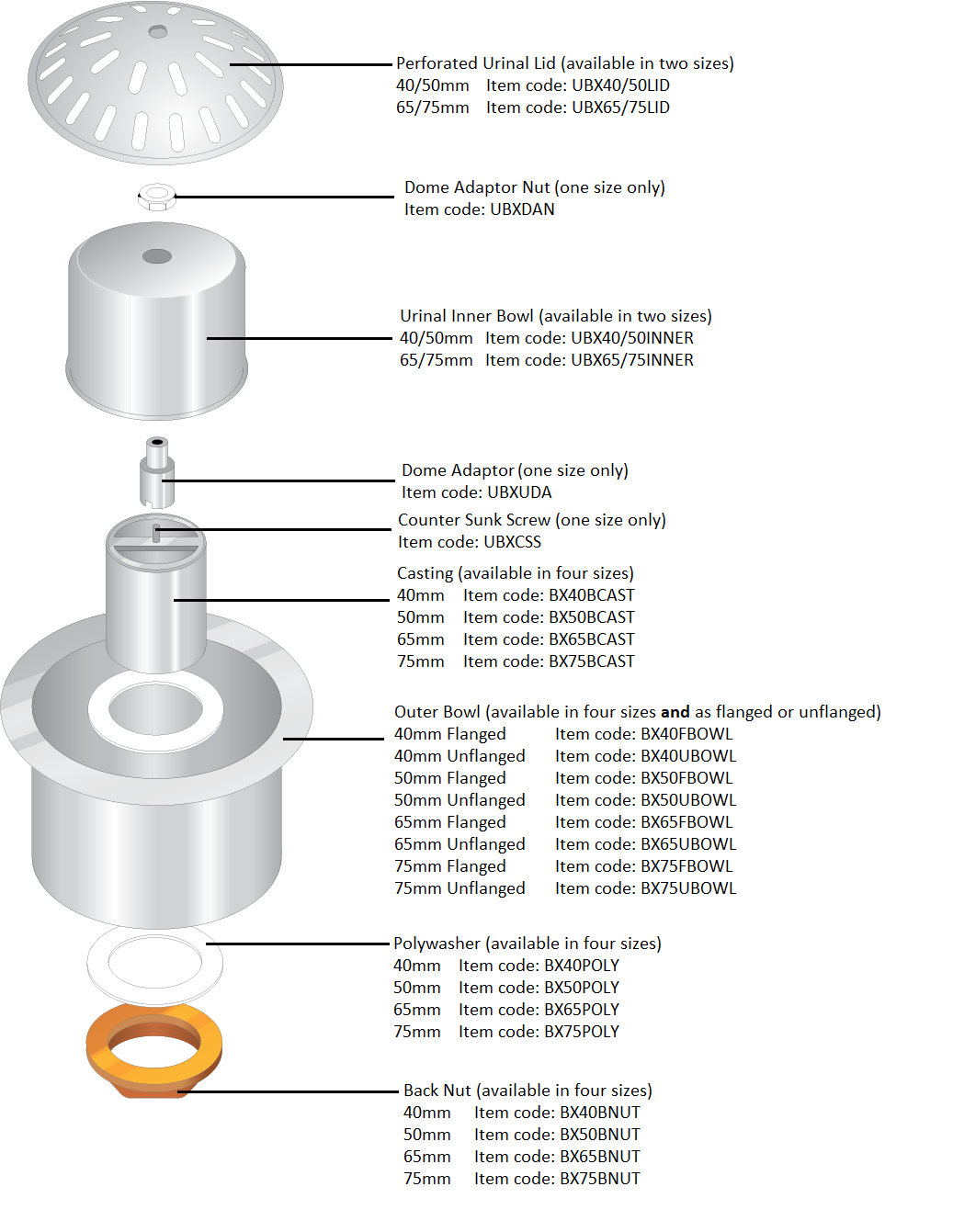

Urinal Waste Traps - diagram

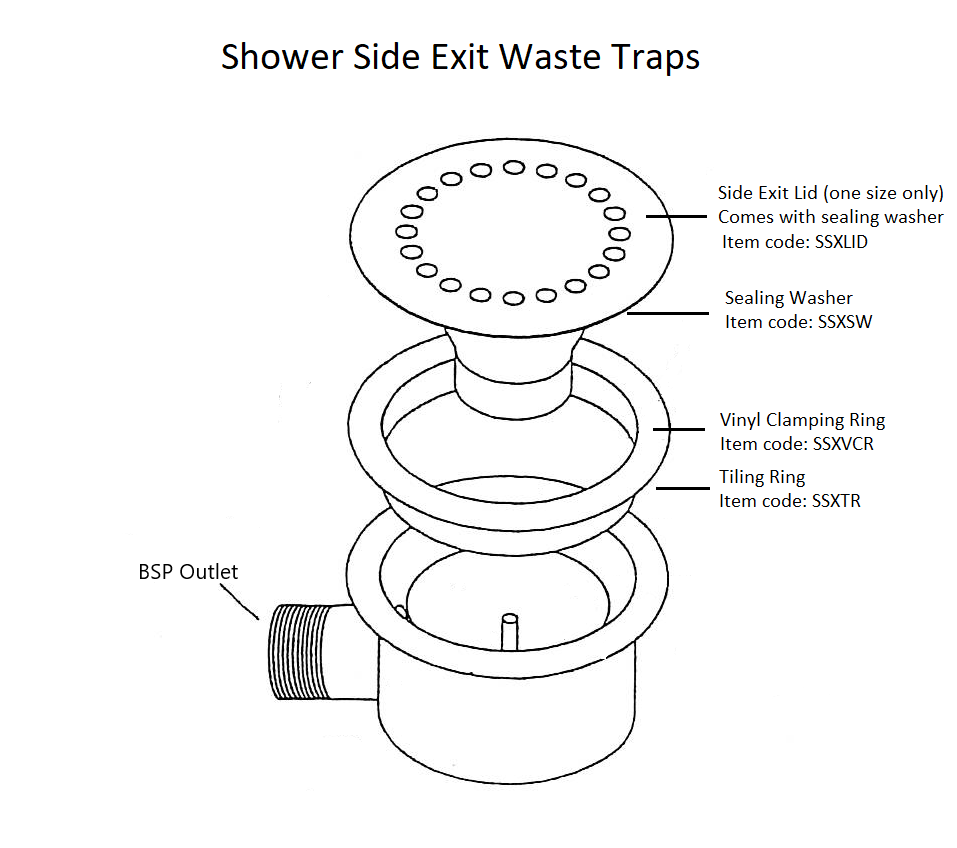

Shower Side Exit Waste Traps

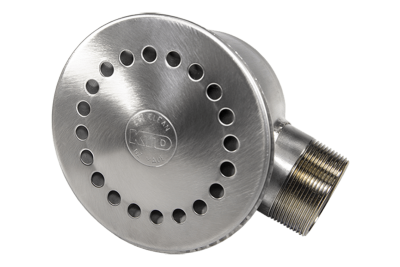

Side Exit Waste Traps are ideal for cramped situations where the clearance between the floor and the exit drain is minimal, meaning a bottom exit trap would not fit. Side Exit Traps reduce the need to dig deep trenches for outflow pipes.

They are often used in places where a trap needs to be retrofitted for direct surface water to sewer pipe flow. Side Exit Waste Traps come with a male threaded nipple to fit a 40mm or 50mm female threaded outlet pipe. Female threaded outlet pipe not supplied, refer to your installer.

Features

  • High quality, durable stainless-steel trap
  • Easy to clean and remove blockages
  • More environmentally friendly than plastic alternatives
  • Ideal for cramped situations with minimal clearance (e.g. retro-fitting)

Technical specifications

Code Outlet Size Flow Rate A B C D
SSX40 40 mm 37 l/min 120 mm 151 mm 151 mm 90 mm
SSX50 50 mm 72 l/min 120 mm 151 mm 151 mm 90 mm
SSXTR Trap tiling ring – fits both sizes
SSXVCR Vinyl clamping ring – fits both sizes

Industrial Bottom Exit Waste Traps

Larger industrial waste traps are ideal for commercial and industrial environments where large volumes of water may need to be drained and solid waste trapped.

They are typically used in wash down areas, overflow situations and washroom facilities.

The top plate is made of tough 3mm stainless steel to withstand the weight of light vehicles, and the outlet is sized to fit inside a bottom exit 100mm PVC sewer pipe. A 150mm outlet pipe option available on request.

Industrial waste traps are manufactured using Type 304 stainless steel. Heavy duty 6mm top plates can be made on request, for use in areas where heavy machinery such as trucks or forklifts may be driving over the waste trap.

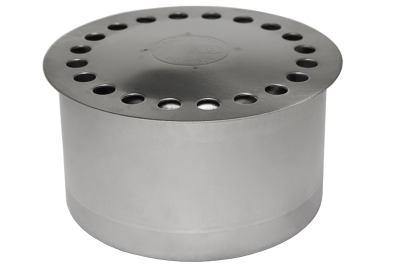

Larger industrial waste traps are ideal for commercial and industrial environments where large volumes of water may need to be drained and solid waste trapped.

Features

  • Tough 3mm stainless steel top, designed to withstand weight of light vehicles
  • Easy to clean and remove blockages
  • More environmentally friendly than plastic alternatives
  • Large outlet ideal for draining large volumes of water and trapping solid waste

Technical specifications

Code Outlet Size Flow Rate A B C D
IBX100* 100 mm 250 l/min 245 mm 270 mm 265 mm 120 mm
*304 stainless steel

Deck and Roof Waste Traps

Esi-Clean deck and roof waste traps are useful for situations where a trap is required over a drain or downpipe to prevent blockages. They are well suited for decks and roofs requiring waterproof membrane sealing. In these situations, the membrane is glued into the inside of the trap bowl when the trap is flush mounted to a floor or roof.

The Esi-Clean deck and roof waste traps have extra low clearance from floor height to exit, allowing them to be used in cramped conditions. The dome top stops rapid blocking of downpipes from debris, making it ideal for rooftop installations.

Available with compression fitting, bottom exit and a dome top. Flat top option available on request.

Features

  • High quality, durable stainless-steel trap
  • Dome top prevents blockages caused by debris
  • Easy to clean and remove blockages
  • More environmentally friendly than plastic alternatives
  • Ideal for cramped outdoor conditions and where a waterproof seal is required

Technical specifications

Code Outlet Size A
DAR65 65 mm 28 mm
DAR75 75 mm 28 mm

Spare Parts

If you find yourself requiring a new dome top, flat top, inner bowl, outer bowl, vinyl clamping ring or any other component part, Esi-Clean Waste Trap’s modular design means you can replace individual parts, rather than requiring a completely new waste trap.

This makes them a more environmentally friendly choice than many other, plastic, alternatives.

Features:

×
×
×

CONTACT

If you have a query or would like to order a product, please send us a message.

498 Waitao Road, Waitao RD5, Tauranga, 3175

Phone: +64 027 249 3043 / +64 027 070 6896

Email: esi-clean@stainlessnz.co.nz
